Komptech Axtor 4510 high speed shredder

High-speed shredder for wood and green waste

The Axtor 4510 is a versatile machine for processing wood and green cuttings. With a 340 kW engine and a total weight under 19 tonnes in the trailer version, the Axtor 4510 is an exact fit for the requirements in the light and medium duty categories. Compact dimensions and high flexibility in applications also make the Axtor idea for subcontractors. Green cuttings, waste wood or logs – through its ability to work in either shredder or chipper mode, the machine always outputs the desired product. Other features of the Actor series are a wide feed area with tilt hopper, tough and aggressive intake system, and roomy service platform with excellent access to engine and drum for maintenance work.

• Active intake with tough steel belt conveyor and very large intake opening
• Two shredding modes - shredder or chipper
• Ideal maintenance access to engine and drum
• Mobility: Central axle trailer or tracked chassis

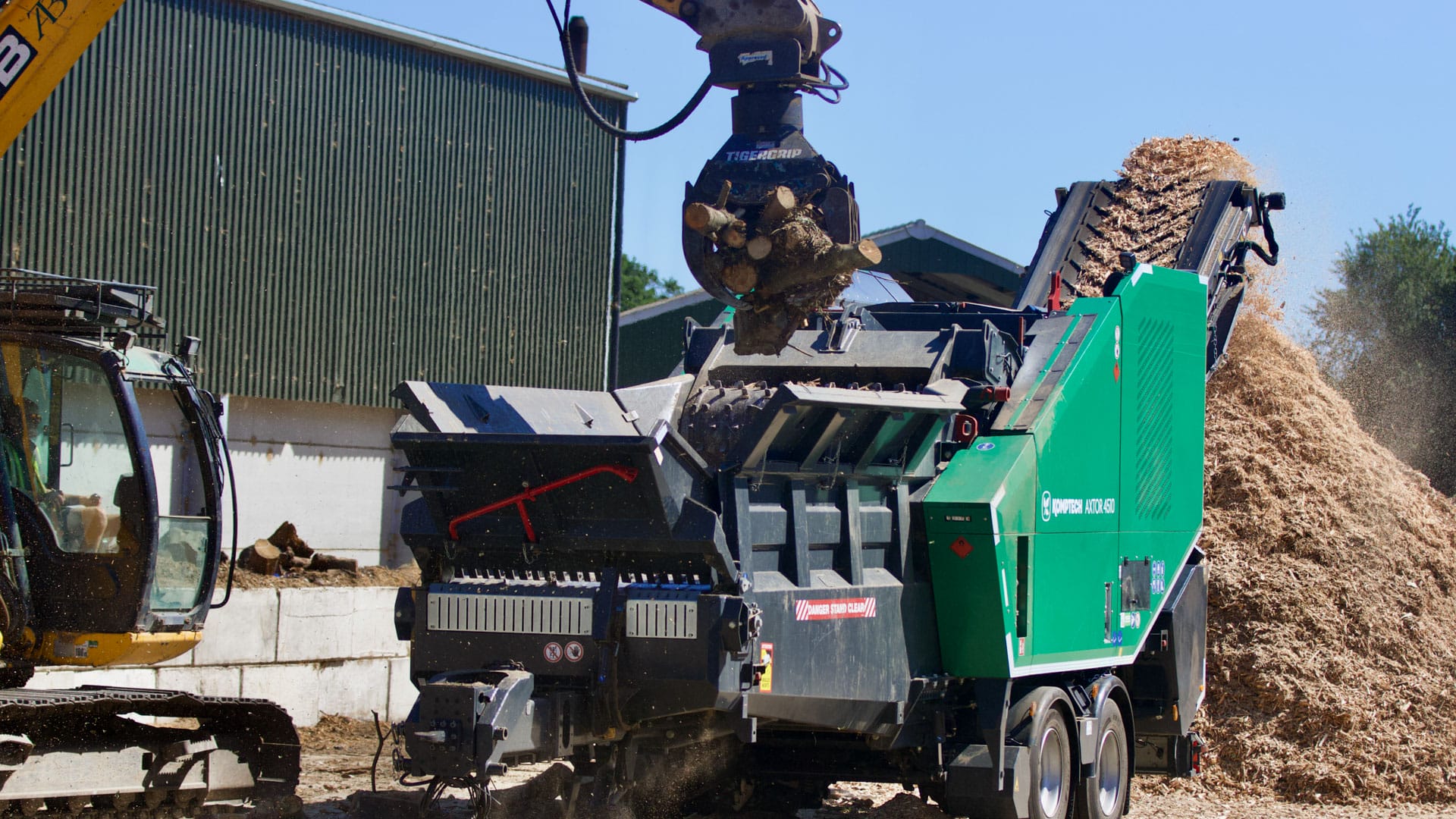

The Axtor 4510 in daily use

Plenty of room in the hopper

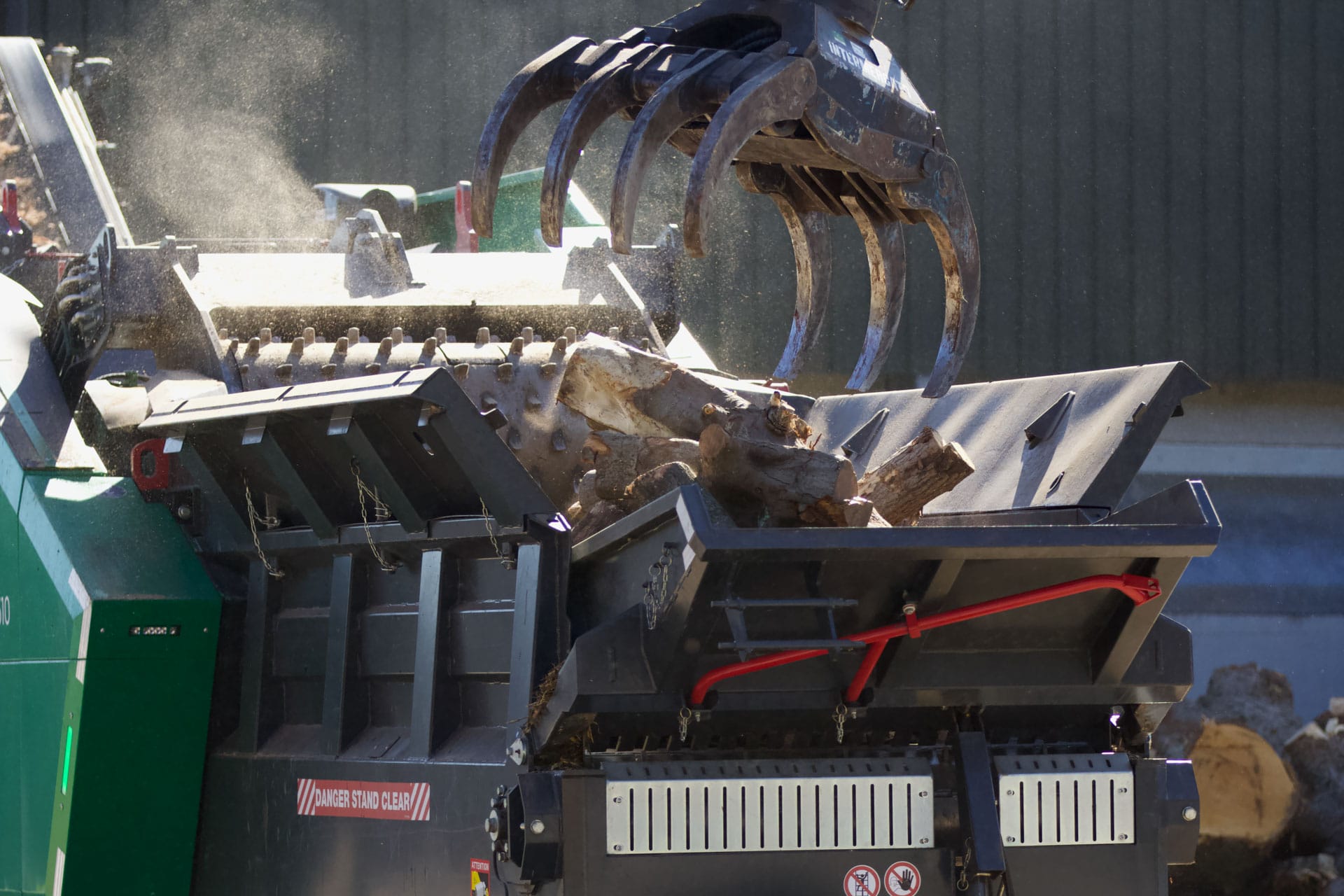

The feed hopper is sized to be a perfect match for the machine’s performance. Over 4 metres long, almost 2 metres wide, and just 2.2 metres loading height – these dimensions mean stress-free work. For long logs the movable hopper opens in the front, and it can also be opened for better feeding of other materials.

Efficient shredding

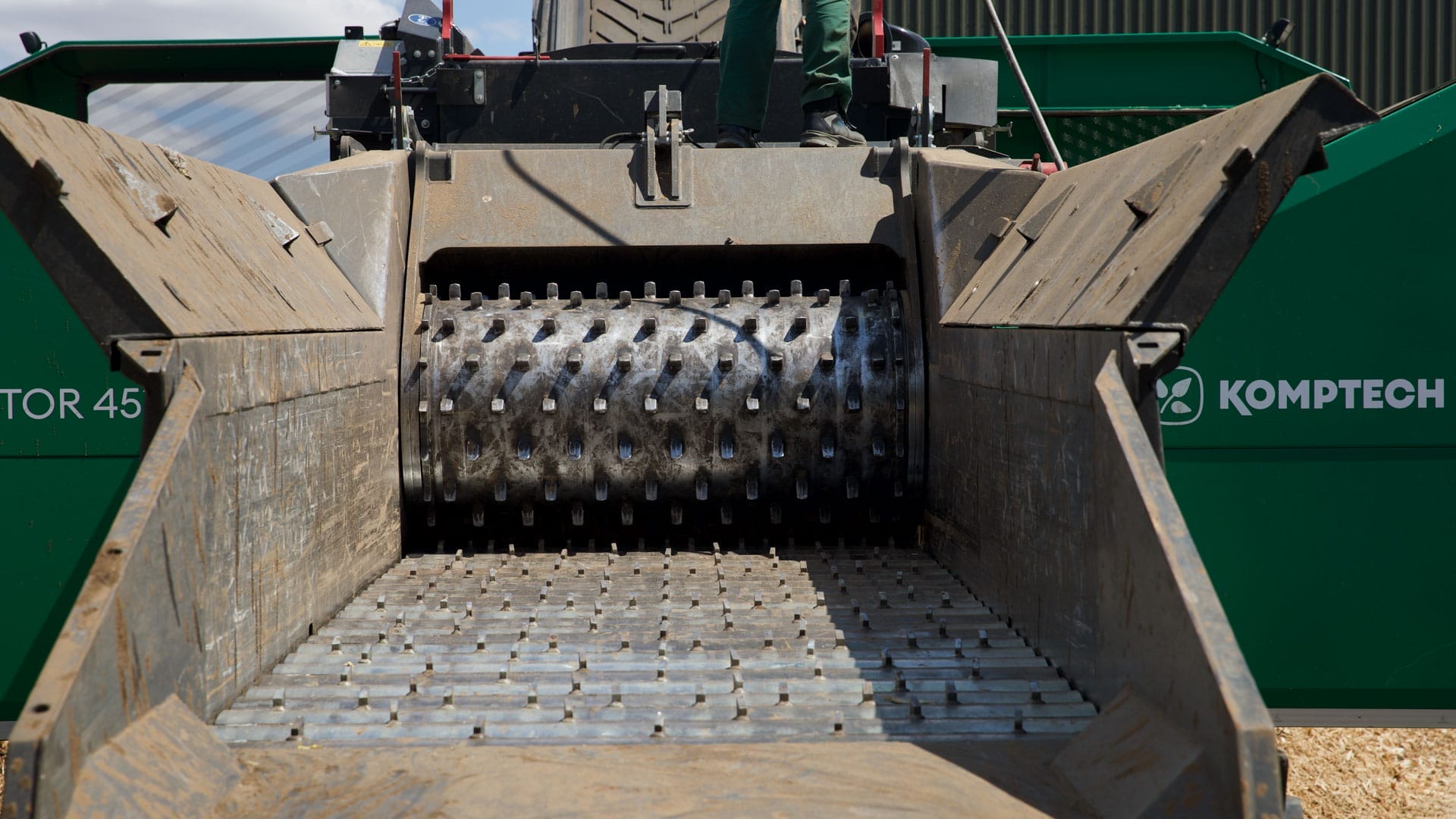

The combination of large feed opening and aggressive feed drum makes for easy feeding of bulky items. The 1.1 metre drum diameter and ideally positioned counter cutter give a power-saving cut geometry. Overlengths are kept out by the screen basket around the drum and the friction floor.

Ready for anything

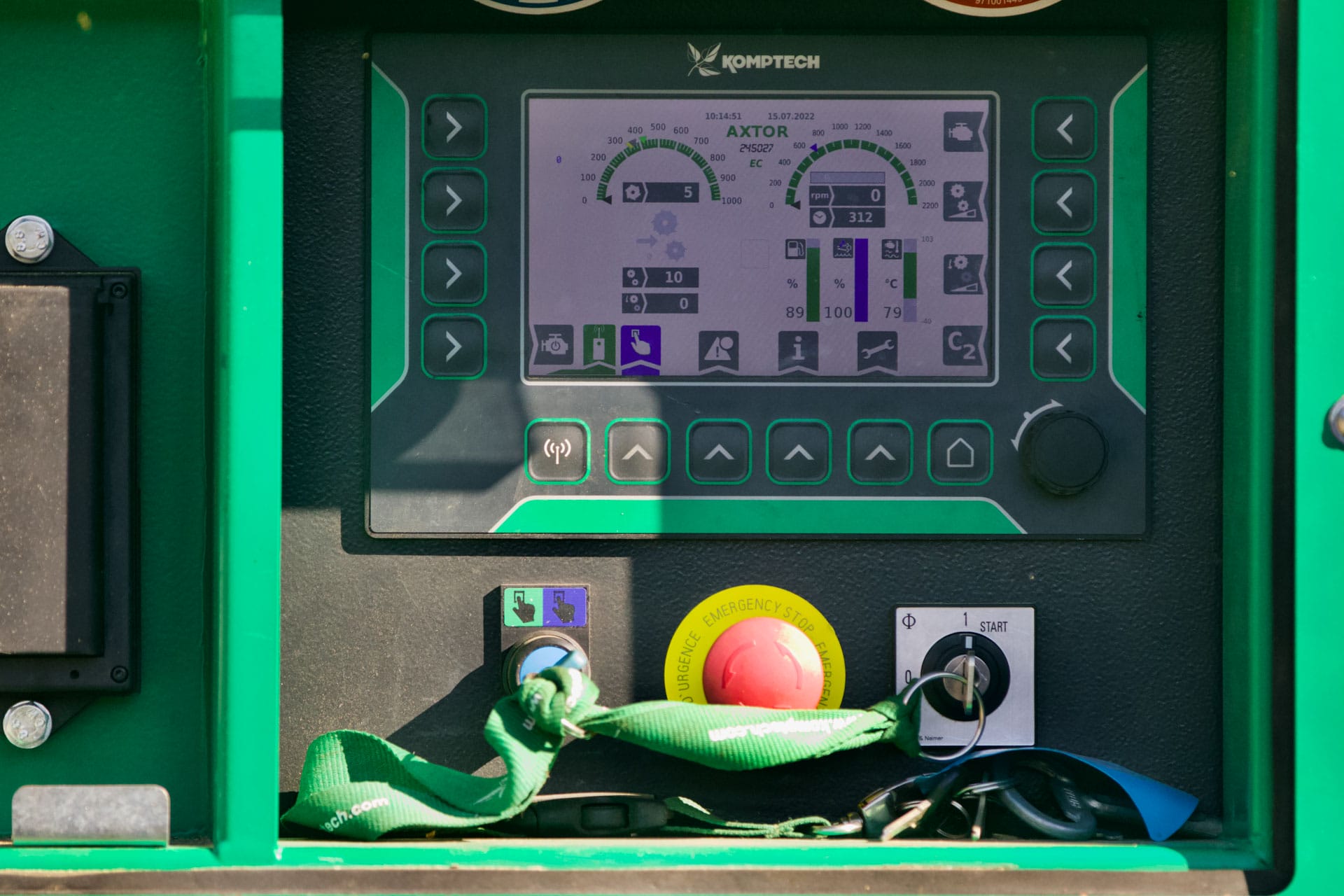

Options let users configure the Axtor for the exact task. Wireless remote control and central lubrication add ease of use and an extended discharge conveyor allows high discharge cones. A magnet drum separates ferrous items from the material flow, and a feed device provides mobility at the point of use.

Perfect maintenance access

The central service platform can be accessed effortlessly by the integrated ladder after opening the side doors. From there all maintenance work on the drum and engine can be done easily and safely, as can screen basket changes.

Always know what’s going on

The Connect! app, which is freely usable with every Axtor, enables transparent administration, optimum job planning and remote monitoring of machines. GPS data provides for precise locating, and the data history and data exports offer many possibilities for improving operating economy. NEW: Throughput measurement and evaluation with Connect!.
